Description

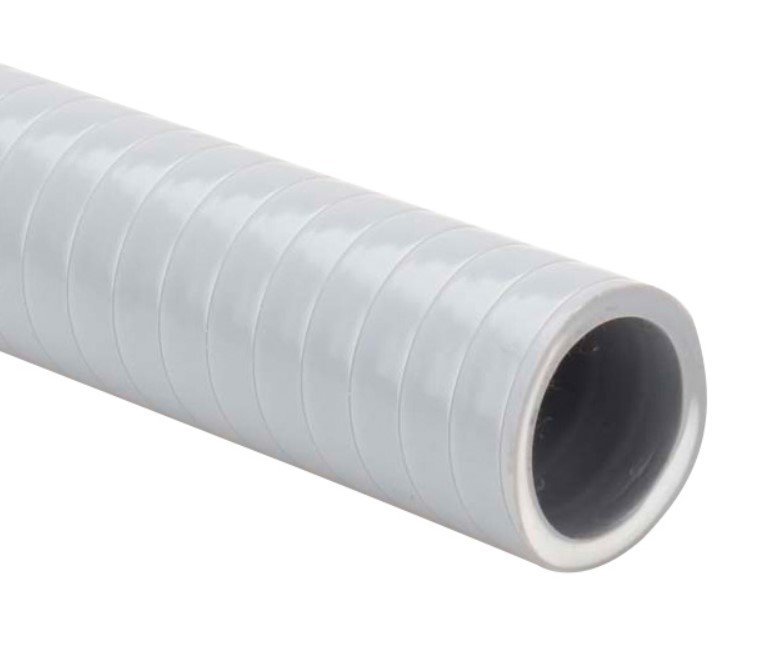

Liquid Tight Flexible Nonmetallic Conduit, PLFNCB series is LFNC-B conduit type and made of thermoplastic polyvinyl chloride (PVC) with smooth inside and outside surface. The material is compliant with RoHS requirement and featured to resist UV, age and oil. The whole size range is certified by UL laboratory according to UL 1660 standard. A reinforce member is embedded in the conduit wall to offer the performance of self-support and crush resistance. This series of flexible conduit is qualified to meet with the wiring demand of NEC electric code and in light weight. The best efficiency of water proof for whole wiring system is able to achieve by connected with the liquid-tight non-metallic fitting series.
Widely used in HVAC, Power Plants, Renewable Energy, Rail / Transit, Tunnel, Ship Building, Wastewater Treatment, etc.
Features
Material：
Thermoplastic Polyvinyl Chloride (PVC)
Temperature Range :
UL：-18℃~+80℃ Dry, 60℃ Wet, 70℃ Oil
cUL：-18℃~+80℃ Dry, 60℃ Wet, 70℃ Oil
IP Rating :
IP 68 When fitted with UL Listed non-metallic connector series P50
Color:
Grey
Flexibility:
Medium
Fire Retardance:
Yes
UV Resistance:
Yes
Certificate:
UL 1660 with UL Fİle number E361947
| Part Number | Nominal Conduit Size (mm) | Nominal Conduit Size (inch) | ID (mm) | OD (mm) | Bending Radius (mm) | Package/Roll (ft/m) | Measurement (LxWxH mm) |
| E-PLFNCB-3/8 | 12 | 3/8 | 12.29~12.80 | 17.53~18.03 | 51 | 100 / 30.5 | 380*380*130 |
| E-PLFNCB-1/2 | 16 | 1/2 | 15.80~16.31 | 20.83~21.34 | 72.5 | 100 / 30.5 | 380*380*180 |
| E-PLFNCB-3/4 | 21 | 3/4 | 20.83~21.34 | 26.16~26.67 | 108 | 100 / 30.5 | 460*460*180 |
| E-PLFNCB-1 | 27 | 1 | 26.44~27.08 | 32.77~33.40 | 165 | 100 / 30.5 | 550*550*210 |
| E-PLFNCB-1-1/4 | 35 | 1 1/4 | 35.05~35.81 | 41.40~42.16 | 203 | 100 / 30.5 | 720*720*220 |
| E-PLFNCB-1-1/2 | 41 | 1 1/2 | 40.01~40.64 | 47.37~48.26 | 228.5 | 50 / 15.3 | 600*600*200 |
| E-PLFNCB-2 | 53 | 2 | 51.31~51.94 | 59.44~60.33 | 282 | 50 / 15.3 | 850*850*200 |
